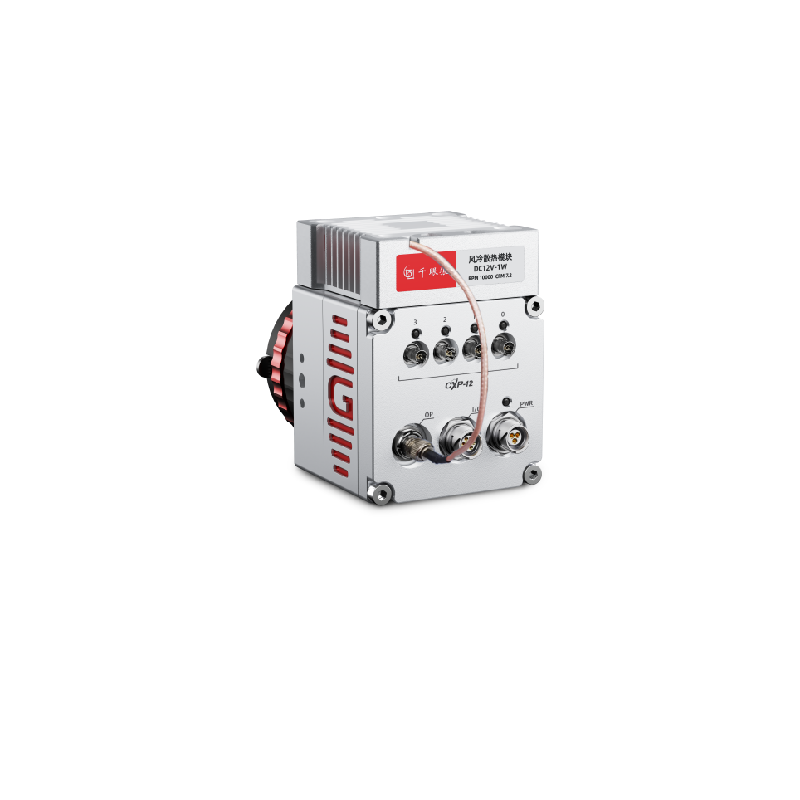

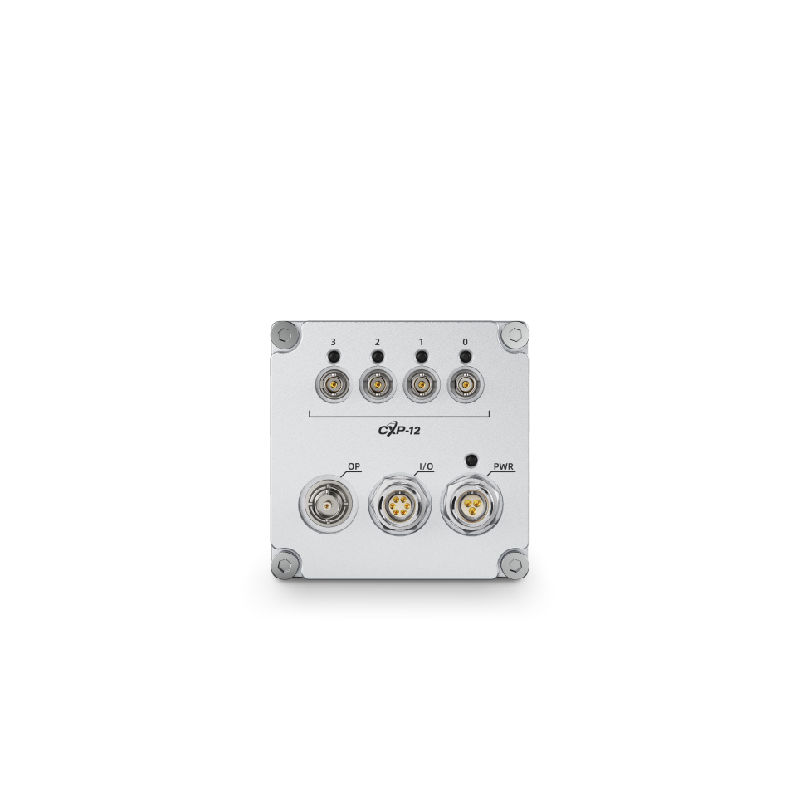

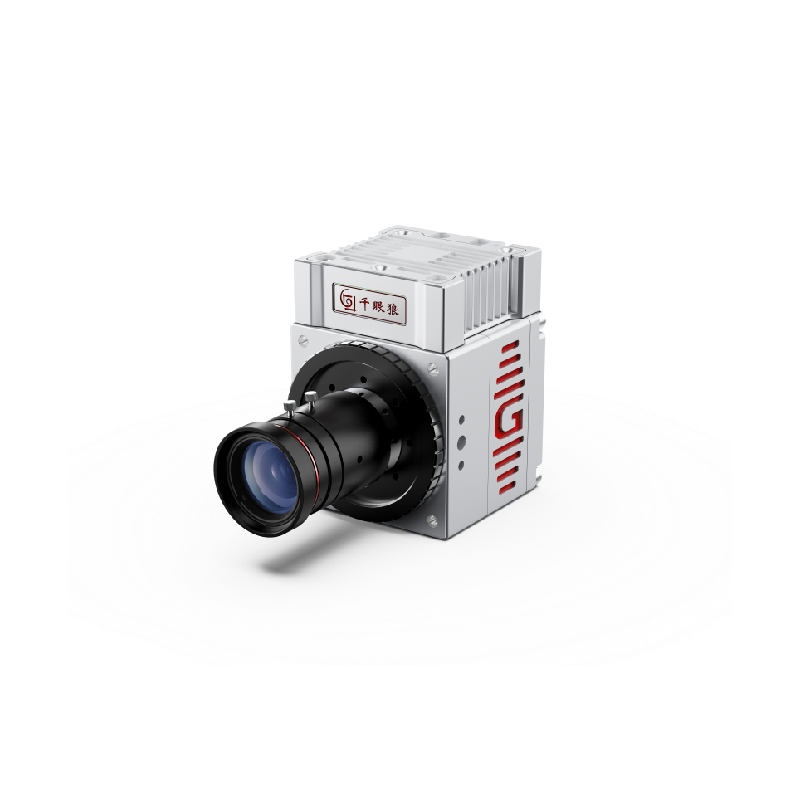

G2100M High-Speed Camera delivers precise performance with its 21-megapixel CMOS sensor, 5120×4096 resolution, and 36 fps frame rate. Featuring a 4.5 μm pixel size and 63% quantum efficiency, G2100M captures ultra-sharp monochrome images with exceptional detail and clarity. Engineered with a compact ≤65×65×61 mm design and weighing just 500 g, this camera offers a 68 dB dynamic range, 1 μs minimum exposure time, and CXP2.0×1 data interface—making it an ideal choice for demanding machine vision and scientific imaging applications. Features of 21 Megapixel PIV Camera 21MP CMOS Sensor, 5120×4096 Resolution 36fps High-Speed Frame Rate 4.5 μm Pixel Size 68dB Dynamic Range CXP2.0×1 Data Interface Compact Size,…
| SKU | G2100M |
| Sensor | CMOS |
| ADC | 12Bit |
| Resolution | 5120×4096 |
| Frame | 36fps |
| Pixel size | 4.5μm |
| Colour | Monochrome |
| QE | 63% |
| Dynamic range | 68dB |
| Min. exposure time | 1μs |
| Minimum time frame | 1.4μs |
| Data interface | CXP2.0×1 |
| Size W×H×D | ≤65×65×61mm |
| Weight | 500g |
