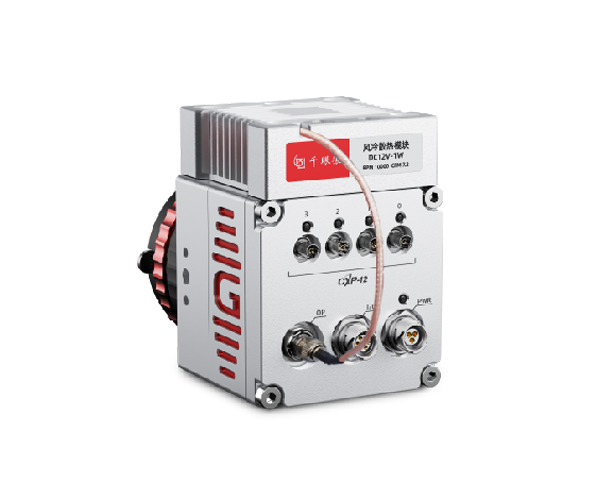

2200fps Real-Time Transmission High Speed Camera

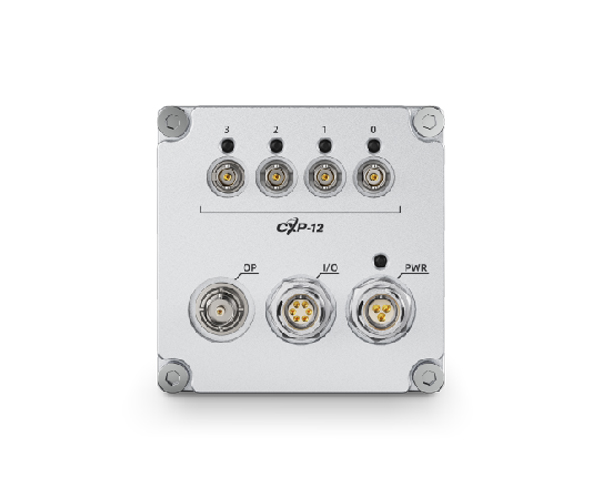

2200fps Real-Time Transmission High Speed Camera - Image 2
2200fps Real-Time Transmission High Speed Camera - Image 3

2200fps Real-Time Transmission High Speed Camera

2,200fps Real-Time Transmission High Speed Camera GR220M is engineered for real-time image acquisition and processing in high-speed machine vision applications. Equipped with a CXP12 interface and 4-channel HD-BNC connectors for data and control, it enables real-time transmission of images and data at ≥4 GB/s to the image acquisition device. Features of 2200fps Real-Time Transmission High Speed Camera 4GB/s real time transmission 2,200fps 1080P capture frame rate Miniature size 2TB storage box for optional 30TB industrial control computer

Category:

Description

Specifications of 2200fps Real-Time Transmission High Speed Camera

SKU GR220M GR210M GR120M GR110M
Sensor CMOS CMOS CMOS CMOS
Resolution @Frame 1920×1088 @2200fps 1920×1088 @1000fps 1024×1024 @2000fps 1024×1024 @1000fps
Shutter Global shutter Global shutter Global shutter Global shutter
Min. exposure time 1μs 1μs 1μs 1μs
Pixel Size 9μm x 9μm 9μm x 9μm 9μm x 9μm 9μm x 9μm
ADC 8bit 8bit 8bit 8bit
AE Available Available Available Available
Data interface CXP12×4 CXP12×2 CXP12×2 CXP12×1
Bandwidth ＞4GB/s ＞2GB/s ＞2GB/s ＞1GB/s
Industrial controllers optional 7~30TB 7~30TB 7~30TB 7~30TB
Storage box optional 2TB 2TB 2TB 2TB
Lens C,F C,F C,F C,F
Size W×H×D ≤65×65×61mm ≤65×65×61mm ≤65×65×61mm ≤65×65×61mm
Weight ≤500g ≤500g ≤500g ≤500g
Mounting hole Bottom 1/4×2 Side 1/4×2 Bottom 1/4×2 Side 1/4×2 Bottom 1/4×2 Side 1/4×2 Bottom 1/4×2 Side 1/4×2
Cooling Fans Fans Fans Fans
Electricity supply CXP cable powered CXP cable powered CXP cable powered CXP cable powered
Power Consumption 16W 16W 16W 16W
Operating temperature 0~40°C 0~40°C 0~40°C 0~40°C
Operating humidity 0~95% 0~95% 0~95% 0~95%
Protection level IP64 IP64 IP64 IP64
