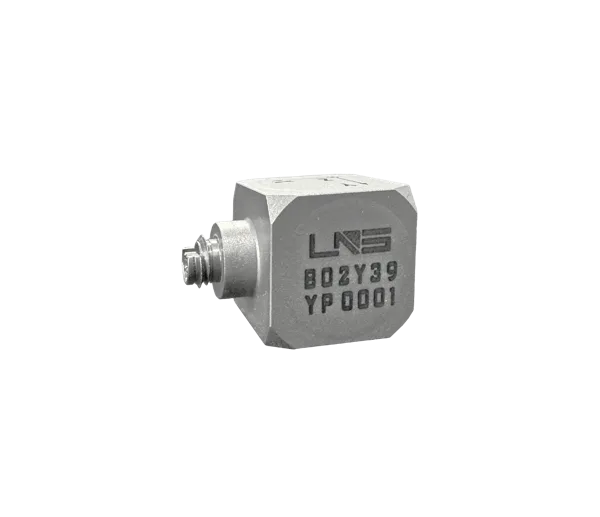

Description
Specifications – Additional Information
| Sensitivity (mV/g) | 10 |
|---|---|
| Range (g) | 500 |
| Broadband Resolution (g rms) | 0.001 |
| Linearity | 1% |
| Frequency Range [5%] (Hz) | 5-8k |
| Min Frequency [5%] (Hz) | 5 |
| Max Frequency [5%] (Hz) | 8000 |
| Frequency Range [10%] (Hz) | 2-10k |
| Resonant Frequency (kHz) | ≥50 |
| Discharge Time Constant (s) | ≤1 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage (Vdc) | 20-30 Vdc |
| Constant Current Excitation (mA) | 2-20 mA |
| Output Impedance (Ω) | ≤100 |
| Output Bias Voltage (V) | 8-12 Vdc |
| Max Acceleration (g) | 1500 |
| Max Shock (g) | 2000 |
| Temperature Range (℃) | -50~100 |
| Min Temperature (℃) | -50 |
| Max Temperature (℃) | 100 |
| Sensitivity Temperature Coefficient (%/℃) | -0.13 |
| Sealing | Laser Welding IP68 |
| Housing Material | Titanium Alloy |
| Output Connector | M3 (Side) |
| Mounting | Adhesive |
| Weight (grams) | 1.5 |
| Sensor Type | Miniature |
| Output Type | IEPE |
| Axis | Triaxial |
| TEDS Optional | No |
